Economical solution for up to 5 accesses (or 5 sensors) without an external control box
Offset M12 connectors for stainless steel products :
Our experience has led us to conclude that M12 connectors mounted directly onto sensors cause reliability issues during washing as well as with machine vibrations. On the other hand, M8 connectors can be quite fragile, especially on products requiring frequent removal. Our solution of a molded M12 cord that is offset by 50 cm allows for the connector part to be housed in the cable trunkings, providing protection from washing jets and mechanical stress.
Integrated auto-control :
This product range integrates an auto-control device and dry contacts for use without an external control box (Pl d/SIL 2). Shock resistance: 10G.
Position control for doors / casings on hazardous machinery :
Contactless encoded electronic sensor with relay
Category 3 total safety management without an external controller
12V version for embedded applications
Level of performance without an external controller: PL = d
Level of performance with AWAX controller: up to PL = e
Safety category without an external controller: 3
Safety Integrity Level: SIL 2
Cycle after dangerous failure: B10d = 2,000,000 at 2A
Max. activation distance: 10 mm, 2 mm hysteresis
Security contacts / diagnostics AMX5 / AMX5CM12:
2 x NO 2A / 48V redundant / 1 x PNP 250mA auxiliary
Security contacts AMX4: 2 x NO 2A/48V redundant
Security contacts / diagnostics AMX3:
1xNO 2A / 48V redundant (2 series contacts) / 1xNF 250mA auxiliary
Detection encoding: mono-code inviolable
Indicator: LED indicates code recognition
Reset: automatic
Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
Mounting position: 2 (double wall brackets)
Material: PA6 or INOX 316L mirror polished (AMX3-OX/AMX5-OX or PC (AMX5CM12)
Electrical Connection: 3, 6, 12m (UL2464 PVC) or 50cm cable with M12 connector (UL20549 PUR) (ref + MKT) or M12 metal base (AMX5CM12)
Water resistance: IP 67/68 (PA6 / PC) or IP 69K with stainless steel - new generation
Temperature: -25°C to +60°C
Marking: PA6 pad printing + serial number, INOX316L laser engraving with mechanically punched serial number for permanent traceability
Certification: TÜV Rheinland 01/205/5238/12
License Test Mark 968/EL 214.01/12
UL 508 / C22.2 no.14 C-UL-US listed 34CB (file E214209)

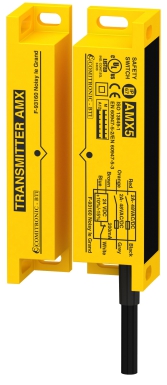

AMX SERIES
