Solution with up to 30 sensors in series with the AWAX control box
The ANATOM78SES-M12 :
- Embedded repulsive magnets make casing mounting necessary, as the detection will not be assured because the door will be kept open.
- Risk of fraud reduced by the addition of a "flying" transmitter for "open cover" operation
Offset M12 connectors for stainless steel products :
Our experience has led us to conclude that M12 connectors mounted directly onto sensors cause reliability issues during washing as well as with machine vibrations. On the other hand, M8 connectors can be quite fragile, especially on products requiring frequent removal. Our solution of a molded M12 cord that is offset by 50 cm allows for the connector part to be housed in the cable trunkings, providing protection from washing jets and mechanical stress.
Position control for doors / casings on hazardous machinery :
Contactless coded electronic sensor
Total safety management with an AWAX controller
Low cost solution for multi-access applications
Level of performance with AWAX controller: up to PL = e
Safety category: up to 4 with an AWAX controller
Time before dangerous failure: MTTFd = 334 years
Max. activation distance: 10 mm, 2 mm hysteresis
Safety contacts/diagnostics: 2 x NO 0.8A max / redundant 24V / 1xcontact PNP 250mA
Detection encoding: mono-code inviolable
Indicator: LED indicates code recognition
Reset: automatic
Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
Mounting position: 78S-98S, 78SMKT, 78SMKT130 versions: 2 (double wall brackets)
Mounting position: 78SM12 and 98SM12 versions: 1
Material: 78S-98S, 78SMKT, 78SMKT130: PA6 or INOX316L (ANATOM78S-OX or ANATOM78S-OX-MKT)
Matierial for 78SM12, 78SESM12 and 98SM12 : polycarbonate (PC)
Electrical Connection: 3, 6, 12m cable (78S/98S) or 50cm cord with M12 connector (ref. + MKT) or 130cm cord with M12 connector (ref. + MKT130) or M12 metal (ref. + M12)
Water resistance: IP 67/68 (PA6, PC) or IP 69K with stainless steel - new generation
Temperature: -25°C to +60°C
Marking: PA6 pad printing + serial no., PC pad printing + serial no., INOX316L laser engraving with mechanically punched serial no. for permanent traceability
Certification: UL 508 / C22.2 no.14 C-UL-US listed 34CB (file E214209) (Not applicable for versions MKT and M12)

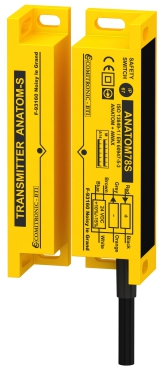

ANATOM 78S-98S,78SMKT,78SMKT130,78SM12,98SM12,78SESM12
