Offset M12 connectors for stainless steel products
Our experience has led us to conclude that M12 connectors mounted directly onto sensors cause reliability issues during washing as well as with machine vibrations. On the other hand, M8 connectors can be quite fragile, especially on products requiring frequent removal. Our solution of a molded M12 cord that is offset by 50 cm allows for the connector part to be housed in the cable trunkings, providing protection from washing jets and mechanical stress.
Position control for doors / casings on hazardous machinery :
Contactless coded electronic sensor
Total safety management with an AWAX controller
High temperature
Level of performance with AWAX controller: up to PL = e
Safety category: up to 4 with an AWAX controller
Time before dangerous failure: MTTFd = 100 years
Max. activation distance: 10 mm, 2 mm hysteresis
Safety contacts/diagnostics: 2 x NO 1A/24V redundant and 1 x 250mA PNP contact
Detection encoding: mono-code inviolable
Reset: automatic
Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
Mounting position: 2 (double wall brackets)
Material: INOX 316L mirror polished
Electrical connection: 50cm Ultra-soft silicone cord with M12 connector.
Water resistance: IP 69K
Extreme temperature: -40°C to +125°C
Protective cover 316L stainless steel mirror polished "ref. + C" option
Marking: laser engraving with mechanical punching of the serial number for

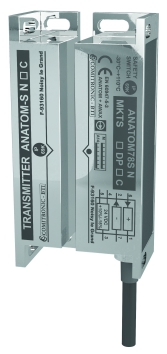

ANATOM78S-N-MKTS
