Offset M12 connectors for stainless steel products :
Our experience has led us to conclude that M12 connectors mounted directly onto sensors cause reliability issues during washing as well as with machine vibrations. On the other hand, M8 connectors can be quite fragile, especially on products requiring frequent removal. Our solution of a molded M12 cord that is offset by 50 cm allows for the connector part to be housed in the cable trunkings, providing protection from washing jets and mechanical stress.
Position control for doors / casings on hazardous machinery :
Contactless coded electronic sensor
Connectors / Wiring compatible with most hardware
Suitable for grooved profiles
Level of performance with AWAX controller: up to PL = e
Safety category: up to 4 with an AWAX controller
Time before dangerous failure: MTTFd = 100 years
Max. activation distance: 8 mm, 2 mm hysteresis
Safety contacts/diagnostics: 2 x NO 0.8A/24V redundant and 1 x 250mA PNP contact
Detection encoding: mono-code inviolable
Indicator: 1 LED indicating code recognition and 1 LED indicating code absence
Reset: automatic
Attachment: 4 tamper-proof M4 screws (optional ref: BH4). Suitable for grooved profiles. Screw caps provided.
Mounting position: 1
Material: INOX 316L mirror polished
Electrical connection: 2 x 50cm cords with M12 connector
Water resistance: IP 69K
Temperature: -30°C to +70°C.
Marking: laser engraving with mechanical punching of the serial number for

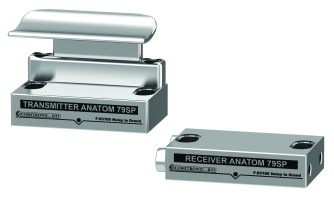

ANATOM 79SP
