Fraud Protection :
The "momentary" function which replaces a push button, includes a 5s delay when the finger or a detectable material remains on the sensitive part. This time can be changed on request.
Design Effect :
The "green opal" body emits LED light.
Anti-vibration Connector :
The screwless connector ensures good wire retention even on vibrating elements.
Capacitive technology luminous bicolor touch control button :
Immunity to water splashes
Momentary, bistable or timed feature
Up to two electrical contacts
Number of cycles: 100 million at 200 mA
Standard activation distance: 0 mm
Remote activation on demand: 1.5 mm

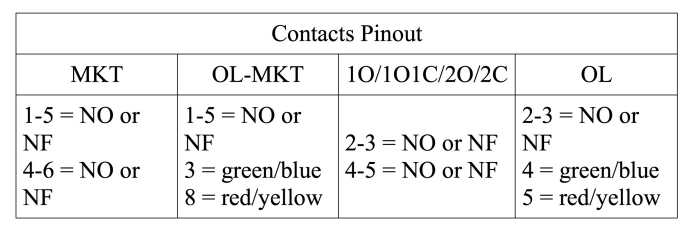

Electrical contact: 1 NO, 2 NO, 1 NO + 1 NF, 400mA/24V
Features to choose from:
ON/ON = momentary and protection against fraud. The action is canceled if the finger or an organic material is present longer than 5s
ON/OFF = bistable. One pulse switches the contacts and another pulse places them at rest
ON/duration/OFF = delayed stop 90s "timer" feature (other value on request)
Offset ON = delayed start. To confirm the request the button must be held for 350ms (other values on request)
Indication by bicolored LED with effects:
Version "VR" solid green and flashing red
Version "BJ" solid blue and flashing yellow
Version "VSR" green shimmer and flashing red
Bicolor LED indication by external control: version "OL"
Sensory indicator for the visually impaired: B30H with vibrator and B30Z with buzzer
Body color: black, gray, white, red, opal green, yellow, green
Attaching B22: M22 screw thread with nut and seal provided
Attachment B30: M30 screw thread with nut and seal provided
Material TR90UV
Food contact: yes
Resistance to washing: yes
Anti-vandalism: yes
Electrical connection: 3m cable
or 50cm cable with M12 connector (UL20549 PUR) or 1.5 mm²
screwless connector or 0.5mm²
screw connector
Waterproofed version CC: IP 67 and IP 69K (in 2015)
Waterproof version CV: IP 67 and IP 69K (front part only)
B22 and B30 Series
