Offset M12 connectors for stainless steel products :
Our experience has led us to conclude that M12 connectors mounted directly onto sensors cause reliability issues during washing as well as with machine vibrations. On the other hand, M8 connectors can be quite fragile, especially on products requiring frequent removal.
Our solution of a molded M12 cord that is offset by 50 cm allows for the connector part to be housed in the cable trunkings, providing protection from washing jets and mechanical stress.
Position control for doors / casings on dangerous machinery with magnetic holding devices :
20 N integrated handle magnetic door holding
High temperature and silicone cable
Contactless coded electronic sensor
Level of performance with AWAX controller: up to PL = e
Safety category: up to 4 with an AWAX controller
Time before dangerous failure: MTTFd = 100 years
Max. activation distance: 3 mm, 1 mm hysteresis
Holding Force: transmitter + receiver in contact = 20N
Safety contacts/diagnostics: 2 x NO 0.8A/24V redundant and 1 x PNP 250mA
Detection encoding: mono-code inviolable
Reset: automatic
Housing mount: 4 tamper-proof M4 screws (optional ref: BH4)
Handle assembly: M8 screw (optional handle)
Mounting position: 2 (double wall brackets)
Material: INOX 316L mirror polished
Electrical connection: 50cm Ultra-soft silicone cord with M12 connector.
Water resistance: IP 69K
Extreme temperature: -40°C to +125°C
Marking: laser engraving with mechanical punching of the serial number

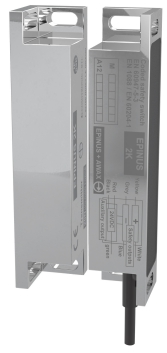

EPINUS 2K NT MKTS
