Offset M12 connectors for stainless steel products :
Our experience has led us to conclude that M12 connectors mounted directly onto sensors cause reliability issues during washing as well as with machine vibrations. On the other hand, M8 connectors can be quite fragile, especially on products requiring frequent removal. Our solution of a molded M12 cord that is offset by 50 cm allows for the connector part to be housed in the cable trunkings, providing protection from washing jets and mechanical stress.
Position control for doors / casings on hazardous machinery :
Contactless encoded electronic sensor with relay
Up to 8 zone differentiation codes
Safety contacts 2A / 250V
Level of performance without an external controller: PL = c
Level of performance with AWAX controller: up to PL = e
Safety category without an external controller: 1
Cycle before dangerous failure: B10d = 2,000,000 at 2A
Max. activation distance 3SSR24V/5SSR24BX/5SSR24BX-US: 8 mm, 2 mm hysteresis
Max. activation distance 2SSR24V/2SSR24BX: 4 mm, 2 mm hysteresis

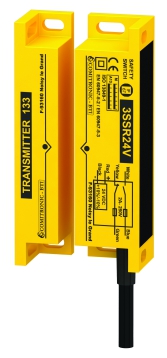

Safety contacts/diagnostics 3SSR24V: 1 x NO 2A/250V / 1 x NF 2A/250V auxiliary
Security contacts/diagnostics 5SSR24BX and 5SSR24BX-US:2 x NO 2A/250V / 1 x PNP NF 250mA auxiliary (24V)
Security contacts 2SSR24V: 2 x NO 2A/250V
Security contacts 2SSR24BX: 1 x NO 2A/250V and 1 x NF 2A/250V
Detection encoding 3SSR24V, 5SSR24BX/5SSR24BX-US: single inviolable code
Detection encoding 2SSR24V and 2SSR24BX: 8 inviolable codes
Indicators 2SSR24V, 2SSR24BX, 3SSR24V and 5SSR24BX: Red LED indicating code absence (not transmitter)
Indicator 5SSR24BX-US: Two-color red/green LED
Reset: automatic
Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
Mounting position: 2 (double wall brackets)
Matierial PA6: 2SSR24V, 2SSR24BX, 3SSR24V, 5SSR24BX, 5SSR24BX-MKT and 5SSR24BX-US
Material INOX 316L mirror polished: 5SSR24BX-OX and 5SSR24BX-OX-MKT
Electrical Connection: 3, 6, 12m cable or 50cm cord with M12 connector (UL20549 PUR) for5SSR24BX-OX and 5SSR24BX-OX-MKT
Water resistance: IP 67/68 (PA6) or IP 69Kwith stainless steel - new generation
Temperature: -25°C to +60°C
Marking: PA6 pad printing + serial number, INOX316L laser engraving with mechanically punched serial number for permanent traceability
SSR SERIES
