Integrated auto-control :
This product range integrates an auto-control device and dry contacts for use without an external control box. Shock resistance: 10G.
Economical solution for up to 5 accesses (or 5 sensors) without an external control box
Position control for doors / casings on hazardous machinery :
Contactless encoded electronic sensor with relay
Category 4 total safety management without an external controller
Up to 124 zone differentiation codes
Level of performance without an external controller: PL = e
Safety category without an external controller: 4
Safety Integrity Level: SIL 3
Cycle before dangerous failure: B10d = 2,000,000 at 2A
Max. activation distance: 10 mm, 2 mm hysteresis
Safety contacts/diagnostics: 2 x NO 2A/48V redundant
1 x PNP 250mA auxiliary
Detection encoding: 124 inviolable codes available
Indicator: LED indicates code recognition
Reset: Manual
Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
Mounting position: 2 (double wall brackets)
Material: Polycarbonate
Electrical Connection: 3, 6, 12m cable
Water resistance: IP 67/68
Temperature: -20°C to +60°C
Marking: screen printed + serial no. for traceability

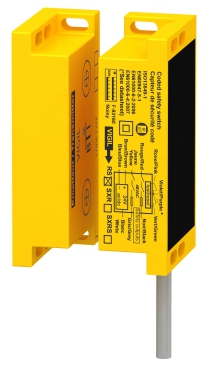

VIGIL SERIES
