Example of application :
Especially suitable for protective casings/doors and floorboards with a rotational or angular movement on wheeled vehicles. Mobile mixer, mobile crusher, wood machinery, mobile tank vehicle, dumpster trunk, road equipment, long-distance transport truck, public works equipment, forestry and agriculture machinery, etc.
Safety position control for doors with RFID encoding on wheeled vehicles :
RFID sensor technology with 16 million codes
Suitable for metallic environments
Programmable code via auto-learning (no software or PC)
Level of performance with AWAX controller: up to PL = e
Safety category: up to 4 (EN 954-1) with AWAX controller
Time before dangerous failure: MTTFd = 40 years
Max activation distance: up to 20 mm
Security contact/diagnostics: 2 x NO 50mA/30V redundant and 1 x PNP 50mA auxiliary
Detection encoding: inviolable multicode
Indicator: LED indicates code recognition
Reset: automatic
Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
Mounting position: 2 (double wall brackets)
Material: PA6
Electrical Connection: 50cm PUR cord with M12 connector
Water resistance: IP 67/68
Standing ambient temperature: -30°C to +50°C.
Storage temperature: -40°C to +85°C
Marking: pad printing + serial no. for traceability
Certification: E2 10R-04 14053 (UTAC)
ISO 7637-2 (Pulse 1, 2a, 2b, 3a, 3b, 4)

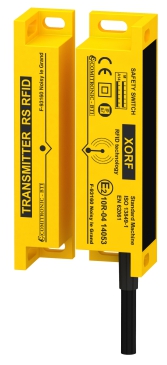

XORF-SA
